          | Contents: Volume 2, Supplement 1; October, 2003
 |

          |  |

          |  |

          | Li-Wei Lin, MD, Tzong-Luen Wang, MD, PhD |

          |
                From the Department of Emergency Medicine (Lin
                LW, Wang TL), Shin-Kong Wu Ho-Su Memorial Hospital.  Correspondence to Dr. Tzong-Luen Wang, Department
                of Emergency Medicine, Shin-Kong Wu Ho-Su Memorial Hospital, 95
                Wen Chang Road, Taipei, Taiwan. E-mail M002183@ms.skh.org.tw   |

          |  Abstract
 |

          |  |  |

          |   Acute
              radiation syndrome is an acute illness caused by irradiation of
              whole body or a significant portion of it from electromagnetic waves
              or accelerated atom particles. It is a sequence of phased syndrome:
              prodromal phase, latent period, clinical illness and one of recovery
              or death. The extent and duration of symptoms depend on individual
              radiation sensitivity, type of radiation, and radiation dose absorbed.
              Increasing radiation dose will heighten the severity of symptoms
              and shorten the duration of each phase. The three clinical forms
              of acute radiation syndrome depending on radiation dose are hematopoietic,
              gastrointestinal and neurovascular. Hematopoietic syndrome produces
              lymphopenia first then pancytopenia and increases the risk of infection
              and bleeding. Gastrointestinal syndrome is characterized by loss
              of the villus structure of intestine and then development of severe
              GI bleeding, diarrhea and abdominal pain along with hematopoietic
              syndrome. Neurovascular syndrome happened minutes after exposure
              with symptoms of vomiting, hypotension, ataxia, confusion, and seizures.
              Fatality is near 100%. Emergency physicians must recognize the manifestations
              of radiation syndrome, so we can provide optimal management for
              radiation victims.Key words--- Radiation Syndrome; Radiation Accident;
              Disaster Medicine
 |

          |
 |  |

          |  Introduction
 |  |

          |  |  |

          |  Radiation incident
              is rare condition but worldwide, the number of radiation incidents
              has reached 403 since 1944.1  They influenced
              with 133,617 victims, of which 2965 had significant exposures and
              120 persons died. Most acute radiation injury is related to nuclear
              weapons, industrial accidents, nuclear power accidents and radiation
              therapy. After terrorist attacked on the World Trade Centers on
              September 11, 2001, the United States and all developed nation had

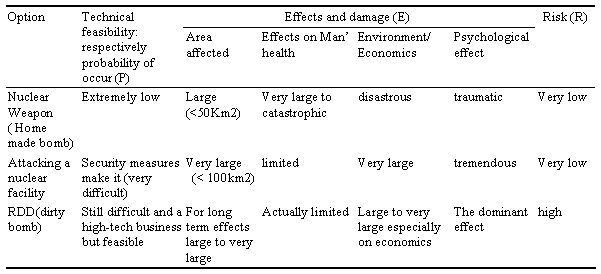

              increasing concern about the possibility of nuclear terrorism. The
              terrorist attack may include dispersal of radioactive substances
              with or without the use of conventional explosives, attacks on nuclear
              reactors and detonation of nuclear weapons.2 In the United State nuclear attacks are thought easier to
              manage than bio-chemical terrorism because more then 10,000 persons
              deal with radiation daily at hospitals, universities, military units,
              national laboratories and government agencies. Geiger counters or
              dose-rate meter are available in more than 3,000 hospitals. Emergency
              personnel can carried these equipments to detect radioactive contamination
              and use a simple blood test, absolute lymphocyte counts and clinical
              manifestation of acute radiations symptoms to assess the severity
              of radiation injuries. In Taiwan we lack of the experience of management
              of radiation crisis so we required a thorough understanding of radiation
              syndromes for effective management of radiation casualties.
             |

          |  |  |

          |  History |

          |  |

          | Most acute radiation
              injury is related to accidents or radiation therapy. Accidents are
              sporadic and usually effect small numbers of victims. The first
              large-scale exposure to radiation has been caused by the detonation
              of atomic bombs over Japan in World War II. One-hundred and twenty thousands individuals developed
              acute radiation syndrome. In the Marshall Islands 7,266 natives
              were exposed to radiation due to errors in judging winds after a
              nuclear test in the South Pacific in 1954.3
              A radiation incident involving a medical Cs-137 source in Brazil
              resulted in 200 contaminated persons and 4 deaths.4
              A nuclear accident at the Chernobyl nuclear power station in Russia
              in 1986 had exposed more than 116,500 persons and resulted in 29
              deaths from acute radiation syndrome.5 |  |

          |  |  |

          |  Epidemiology |  |

          |  |  |

          |
              Radiation is energy traveling through
                the space. Radiation includes electromagnetic emissions and particles.6
                Ionizing radiation means electromagnetic (X ray and gamma) or
                particulate (alpha, beta and neutron) radiation capable of producing
                ions or charged particles. Ionizing radiation comes from unstable
                atoms that had radioactivity to emit radiation spontaneously.
                Gamma and X rays are electromagnetic radiation like light, radio
                waves and ultraviolet light but they have short-wave, high-frequency
                and more energy. Gamma and X rays travel many meters in air and
                several centimeters in human tissue. They penetrate most materials
                and is called penetrating radiation. Only dense materials like
                lead shied prevent penetrating radiation. A person exposed to
                penetrating radiation is not radioactive.
 Alpha radiation has 4 neutron masses and +2 charges. It travels
                only a few centimeters in air and cannot penetrate skin. It can
                be hazard from inhaled, swallowed, or absorbed through open wounds
                with alpha-emitting materials. Paper and keratin layer of skin
                provide protection against for most alpha radiation.
 Beta radiation is thru electrons and travels meters in air and
                up to 8 millimeters into skin. It may be harmful if beta-emitting
                materials deposited on skin or internally. Beta radiation can
                be prevented by clothing and turnout gear.
 Neutrons possess a large range of energy and variable penetrating
                ability. The major source of neutrons comes from critical accidents
                around nuclear power production facilities or nuclear weapons.
                It had a unique property that a stable atom may absorb a neutron
                and then become an unstable atom. Metallic object worn or implanted
                in the affected person and sodium in human body will become radioactive.
 Ionizing radiation produces free radicals from water and then
                disrupts chemical bonds. This causes damage of cellular biochemical
                systems and DNA. Cellular replication and protein synthesis are
                further disrupted. If higher radiation dose absorbed damage will
                overcome the ability of repair. In general rapid replicating cells
                are vulnerable to radiation, e.g. blood, gut, epithelium, and
                reproductive cells. Clinically young patients, men and debilitated
                patients are more susceptible from radiation.
 |  |

          |  |  |

          |  Radiation
            Measuring |  |

          |  |  |

          | Variable methods were developed for
              measuring radiation. The dose and amount of radiation absorbed by
              the exposure person determinate the toxicity
              of radiation injury. The units of radiation measure are listed
              in Table.1 Common radiation-monitoring equipments include dosimeters and survey
              meters. Dosimeters were worn on the upper torso to record the cumulative
              dose of beta, X and gamma rays. Two types are thermoluminescent
              dosimeter or film badge and pocket dosimeter. But these devices
              need processing. Some self-reading pocket dosimeters may be read
              immediately. Measurement is typically recorded in milliroentgen
              (mR).
 Geiger counter and ionization chamber are types
              of survey meters for recording exposure rate of radiation. Geiger
              counter is used for detecting low exposure of X, gamma and beta
              radiation. With special instrument GM counter can detect alpha radiation.
              Ionization chamber is for high exposure of X and gamma rays. Estimates
              are typically recorded in cpm and mR/h. 2500 cpm is equal to 1 mR/h.
 |  |

          |  |  |

          |

                |  | Table .Units of Radiation Measur |  |  |

          |  |  |

          |  Clinical
            acute radiation syndrome |  |

          |  |  |

          |
              Acute radiation syndrome has somewhat predictable clinical
                courses.7 During
                prodromal phase nausea, vomiting and fatigue happen. According
                to absorbed dose its onset begins from 3-6 hours to minutes and
                last from 24 to 48 hours. Latent phase follows prodromal phase
                and last up to 2 weeks. In the period bone marrow suppression
                and gastrointestinal system destruction occur insidiously but
                the victim is asymptomatic. Clinical illness develops after affected
                systems loss its function. Depending on absorbed radiation dose
                it divides to hematopoietic, gastrointestinal and neurovascular
                syndrome. Death or recovery follows the critical period.Whole body irradiation dose at < 2 Gy is considered subclinically.1,2,6-8
                No symptoms develop when exposure to < 0.75-1 Gy. At 1- 2 Gy
                nausea and vomiting occur 3-6 hours later after events and last
                shorter than 24 hours. Under this exposure radiation victims have
                no disease.
 |  |

          |  |

          | Hematopoietic Syndrome |  |

          | When exposure
              dose is greater than 2 Gy, acute nausea and vomiting (50-100%) happen
              within 3 hours and last 24-48 hours depending on lower or higher
              dose. Latent phase follow from 2 days to 2 weeks. Acute leukocytosis
              present after irradiation and then lymphocyte falls. Thrombocytopoenia,
              neutropenia and anemia follow in sequence. The maximum effect on
              bone marrow suppression occurs at 3 weeks after radiation exposure.
              Infection and bleeding developed due to neutropenia and thrombocytopoenia.
              During this clinical phase infection and sepsis, especially with
              Gram-negative bacteria are leading causes of mortality. Death rate
              is 0-90% depending on dose received and treatment. |  |

          |  |  |

          | Gastrointestinal Syndrome |  |

          | Over 10 Gy exposure
              gastrointestinal syndrome occur but also may occur at lower dose
              such 5 Gy. LD 50 for human without treatment is about 325 rads.
              Nausea and vomiting happened within 1 hour after exposure. Nausea,
              vomiting and diarrhea are more profuse than hematopoietic syndrome.
              Villus structures are destroyed and massive amount of plasma are
              shift to the intestine. Severe gastrointestinal symptoms recur within
              1-3 days with diarrhea, gastrointestinal bleeding and abdominal
              cramping. These induce fluid loss, electrolyte imbalance, dehydration,
              septicemia and shock. Hematopoietic syndrome follows soon later.
              Mortality is usually caused by bleeding and Gram-negative sepsis.
              Survivals are usually complicated late by bone marrow suppression.
              With treatment death rate is 90-100%. |  |

          |  |  |

          | Neurovascular Syndrome |  |

          | Neurovascular
              syndrome is the most dangerous condition of radiation injury associated
              with exposure to radiation dose greater to 30 Gy. Nausea, vomiting,
              and prostration occur within minutes. Tremor, ataxia, confusion,
              convulsion, hypotension and hyperpyrexia develop within hours. Patients
              who receive more than 50 Gy usually die within 24 to 48 hours. Fatality
              is near 100%. |  |

          |  |  |

          |  Diagnosis |  |

          |  |  |

          |

                Acute radiation syndrome is clinically suspected by history
                  of exposure, clinical symptoms and laboratory tests.(1)
                   Patients develop a predicable
                  pattern of acute radiation syndrome after a history of radiation
                  exposure
 (2)
                   Specific symptoms with a 2-3
                  week prior history of unexplained nausea and vomiting, are


                   Thermal burn lesion without heat or chemical
                    exposure
                   A tendency to bleed (epistaxis, gingival bleeding,
                    petechiae)
                     Infection
                    with bone marrow suppression (neutropenia, lymphopenia and
                    thrombocytopoenia)
                   Epilation

              (3)Obtain complete blood count with
              differential immediately post event. Repeat every 6 hours for 48
              hours. Absolute lymphocyte count at 48 hours predicts the exposure
              radiation dose.2

                Over 1500= trivial or no exposure, 0-0.4 Gy,
                  Excellent prognosis  Over 1000= moderate
                injury, 0.5-1.9 Gy, survival without treatment
                500-1000= severe injury, 2.0-3.9 Gy, survival with treatment
                100-500= very severe injury, 4.0-7.9 Gy, death
                  without bone marrow transplant
                Under 100= lethal injury, >8.0 Gy, certain
                  death
               (4)
                 Swabs from body orifices and wounds
                if external contamination is suspected. Collect 24 hours urine
                and stool if internal contamination is possible. |

          |  |  |

          |  Treatment |  |

          | Medical management for radiation
              emergency includes triage, emergency care, and definitive care.
              During triage we focus on immediately life-threatening problems
              and priority. Emergency care includes decontamination, therapy and
              diagnosis of radiation and combined injuries. Definitive care provide
              final disposition and stand care for patients. |  |

          |  |  |

          | Antiemetics |  |

          | Nausea and vomiting
              was prodromal symptoms after radiation exposure. Use serotonin 5-HT3
              receptor blockages, such as garanisetron (Kytril ®) or ondansetron
              (Zofran ®) will diminish nausea and vomiting.7
              But these drugs will not change the clinical course of radiation
              injury. |  |

          |  |  |

          | Infection prophylaxis and control |  |

          | Sepsis is the primary enemy of radiation victims. Prevention
              of infection need reverse isolation, avoidance of invasive procedure,
              such as CVP, NG and Foley, insertion, prophylactic antibiotics and
              stimulation of hemataopoiesis. Antibiotics are used only when afebrile patients
              with absolute neutrophil count<100 cells/μl or febrile patient
              with absolute neutrophil <500 cells/μl. Gram-negative bacterial
              infections are the most concern such as other patients received
              chemotherapy with neutropenia and fever.9
              Life-threatening gram-positive bacterial infections also would happen.
              Empire anitibiotics must cover broadly against gram-negative bacteria
              and be continued least 7 days after defervescenece.
 The degree and duration neutropenia increases the
              risk of infection increases. Use hematopoietic growth factors, such
              as G-CSF or GM-CSF has important role for severely exposure patients.
              It shorten the time of neutrophil recovery and decrease the risk
              of infection. Recommendations for uses of cytokines are Filgrastim
              (G-CSF) 2.5-5 μg/kg/QD SC, Pegfilgrastim (pegG-CSF) 6mg QD SC and
              Sargramostim (GM-CSF) 5-10 μg /kg/QD SC.7
 |  |

          |  |  |

          | Transfusion support |  |

          | Transfusion of
              packed red blood cells and platelets is necessary for symptomatic
              anemia and severe thrombocytopoenia (platelets< 20,000) or bleeding.10 |  |

          |  |  |

          | Bone marrow transplant |  |

          | Bone marrow transplantation
              or peripheral blood transplantation is indicated when whole body
              irradiation more than 5 Gy. 11Above
              this level bone marrow suppression would be irreversible or prolonged.
              In Chernobyl nuclear reactor accident 13 persons exposure greater
              than 5 Gy received bone marrow transplantation and only 2 persons
              survived. |  |

          |  |  |

          |  Summary |  |

          | Acute radiation
              syndrome has a predicable pattern of disease progression. Absorbed
              dose can be simple calculated by the fall of absolute lymphocyte
              count and dosimeters. Understand the absorbed radiation dose physicians
              can estimate outcome and provide proper intervention for radiation
              causalties. The probability of radiation accidents is rare but real.
              Emergency health workers must have the knowledge of radiation injury
              and the skill of decontamination for this challenge. |  |

          |  |  |

          |  References |  |

          |  |  |

          | 1. | Radiation Emergency Assistance Center/Training Site
            (REAC/TS). Available at: URL: http://www.orau.gov/reacts |

          | 2. | Mettler FA, Voelz GL. Current concepts: major radiation exposure-what
            to expect and how to respond. NEJM 2002;346:1554-61 |

          | 3. | 3. Hamilton TE, van Belle G, LoGerfo JP. Thyroid neoplasia in Marshall
            islanders exposed to nuclear fallout. JAMA 1987;258:629-36 |

          | 4. | 4. Gal RP. Treatment of radiation victims in Brazil. Science 1988;22:335 |

          | 5. | 5. Linnemann RE. Soviet medical response to the Chernobyl nuclear
            accident. JAMA 1987;258;637-43 |

          | 6. | Hogan DE, Kellison T. Nuclear terrorism. Am J Med Sci 2002;323:341-49 |

          | 7. | Jarrett D, ed. Medical management of radiation casualties: handbook.
            AFRRI special publication 03-1. Bethesda, Md.: Armed Forces Radiobiology
            Research Institute, 2003 (Also available at http://www.afrri.usuhs.mil.) |

          | 8. | Finch SC. Acute radiation syndrome. JAMA 1987;258:664-7 |

          | 9. | Conklin JJ, Walker RI, Hirsch EF. Current concepts in the management
            of radiation injuries and associated trauma. Surg Gynecol Obstect
            1983;156:809-29 |

          | 10. | Gale P. Immediate medical consequences of nuclear accidents. JAMA
            1987; 258:625-8 |

          | 11. | Geiger HJ. The accident at Chernobyl and the medical response.
            JAMA 1986;256:609-12 |

          | . |  |

          |  |  |

          | . |  |

          |  |  |

          | . |  |

          | . |  |

          | . |  |

          | . |  |

          |  |  |
